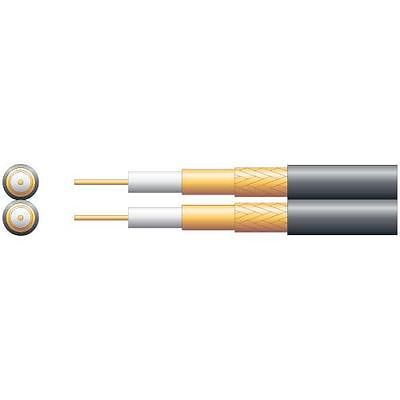

Mercury 807.028 Twin Economy Foam Filled Satellite/TV Coaxial Cable Black - 100m

Be the first to review this product

Mercury 807.028 Coaxial Cable Twin coaxial cable constructed by bare copper conductor, copper clad aluminium braiding with copper foil screen and foam filled dielectric. Suitable for digital TV and satellite installation use. Features: CSA: 2 x 0.79mm² Conductor Material: Bare copper Braid: 2 x 64 x 0.12mmŲ Braid material: CCA Screen: Copper foil Dielectric: 2 x 4.60mmŲ Foam P.E. Impedance: 75 ohms Velocity factor: 0.83 min. Return loss 5-400MHz: 28dB min. Return loss 450-1000MHz: 20dB min. Return loss 1000-2150MHz: 18dB min. Attenuation @ 5MHz: 1.8dB max. Attenuation @ 50MHz: 4.70dB max. Attenuation @ 100MHz: 6.6dB max. Attenuation @ 200MHz: 9.70dB max. Attenuation @ 400MHz: 14.6dB max. Attenuation @ 860MHz: 19.6dB max. Attenuation @ 1000MHz: 21.6dB max. Attenuation @ 1750MHz: 29.1dB max. Attenuation @ 2150MHz: 32.7dB max.
