Mercury 130.021 Built-in Signal Mixer Clamp-on Wideband Mixer FM/DAB/DTV 2 Out

Be the first to review this product

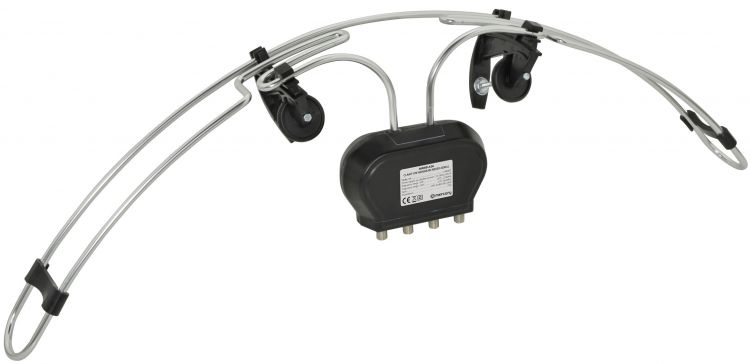

Mercury 130.021 Clamp-on Mixer Aerial An advanced wideband aerial designed to clamp onto a satellite dish. The built in signal mixer transmits both TV and satellite signals down a single cable, then at the end of the cable run a diplexer separates the TV and satellite signals. Features: Designed to mount on a satellite dish, saving the need for mast installation Compatible with both analogue and digital TV reception (DVB-T, ISDB-T, DMB-T/H, ATSC) Wideband reception range for FM/VHF/UHF signals Built-in signal mixer allowing terrestrial signal to be transmitted down the same cable as satellite signal Built-in low noise amplifier to minimise signal loss Supplied with diplexer to separate TV and satellite signals Supplied with 1.0m F plug to F plug lead (1 lead for 130.020, 2 leads for 130.021) Available in single input for single LNB and double inputs for twin LNB Power: Via satellite receiver 13-18Vdc, 60mA Frequency range: VHF 87.5-230MHz Frequency range: UHF 470-862MHz Impedance: 75 Ohms Insertion loss: 3dB Satellite pass band: 950 - 2150MHz Input/Output: 2/2 Input: 2 x Sat Output: 2 x Mix Gain: VHF 26dB Gain: UHF 24dB Colour: Black
