Mercury 130.023 Wideband Clamp-on Mixer Aerial With 4G/LTE Filter - 2 Outputs

Be the first to review this product

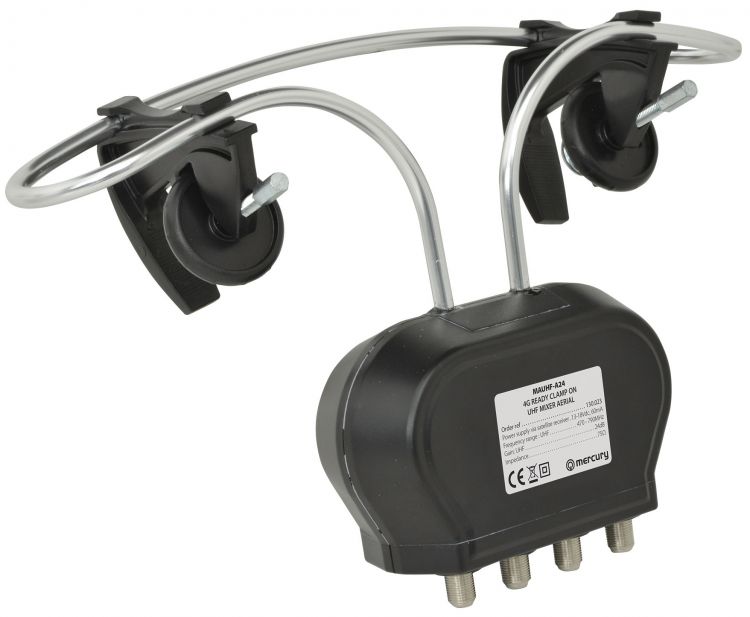

Mercury 130.023 Clamp-on Mixer Aerial An advanced wideband aerial with 4G LTE filter designed to clamp onto a satellite dish. The built in signal mixer transmits both TV and satellite signals down a single cable, then at the end of the cable run a diplexer separates the TV and satellite signals. Features: Designed to mount on a satellite dish, saving the need for mast installation Compatible with both analogue and digital TV reception (DVB-T, ISDB-T, DMB-T/H, ATSC) Integrated LTE signal filter avoids interference and channel loss from 4G mobile signals Built in signal mixer allowing terrestrial signal to be transmitted down the same cable as satellite signal Built in low noise amplifier to minimise signal loss Supplied with diplexer decoder to separate TV and satellite signals Supplied with 1.0m F plug to F plug lead (1 lead for 130.022, 2 leads for 130.023) Available in single input for single LNB and double inputs for twin LNB Power: Via satellite receiver 13-18Vdc, 60mA Frequency range: UHF 470 - 790MHz Impedance: 75 Ohms Insertion loss: 3dB Satellite pass band: 950 - 2150MHz Input/Output: 2/2 Input: 2 x Sat Output: 2 x Mix Gain: 24dB Colour: Black
