Mercury 805.832 Economy RG6 Satellite Cable 100m Reel For Satellite Installation

Be the first to review this product

Brand new in packaging, Mercury 805.832 Satellite Cable

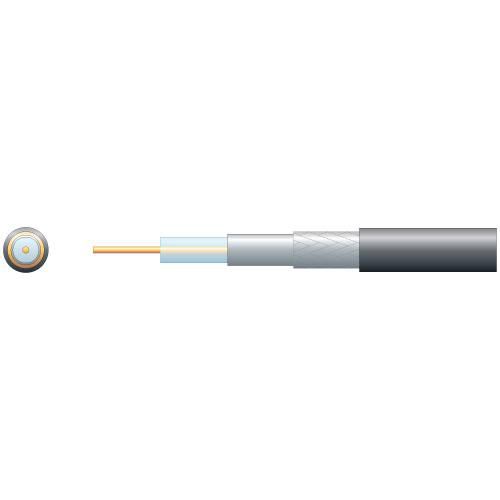

Coaxial cable constructed by copper clad steel conductor, aluminium magnesium braiding with aluminium foil screen and air spaced polythene dielectric. Suitable for satellite installation use.

Features:

  • Conductor material: CCS
  • Braid: 48 x 0.12mmØ
  • Braid material: ALMG
  • Screen Aluminium foil
  • Dielectric Air spaced P.E.
  • Impedance: 75 ohms
  • Velocity factor: 0.83 min.
  • Length: 100m
  • Return loss 5-400MHz: 24dB min.
  • Return loss 450-1000MHz: 20dB min.
  • Return loss 1000-2150MHz: 18dB min.
  • Attenuation @ 5 MHz: 2.9 dB max
  • Attenuation @ 50MHz: 5.2 dB max
  • Attenuation @ 100MHz: 6.9 dB max
  • Attenuation @ 200MHz: 10.2 dB max
  • Attenuation @ 400MHz: 14.9 dB max
  • Attenuation @ 860MHz: 20.3 dB max
  • Attenuation @ 1000MHz: 22.5 dB max
  • Attenuation @ 1750MHz: 29.8 dB max
  • Attenuation @ 2150MHz: 33.6 dB max
  • Colour: Black

    • 2 In Stock
    £16.63 inc VAT
